Digimatic Indicator series 5
Range: .5″
Overall accuracy: .0001″
Measuring force: 1.5N or less
Unit type: Inch / Metric
Type: flat-back, ASME/ANSI/AGD
Mitutoyo M-543-392B ABS Digimatic Indicator ID-C (.5″)
Range: .5″
Resolution: .0005″ / .0001″ / .00005″ / 0.001mm / 0.01mm
Overall accuracy: .0001″
Measuring force: 1.5N or less
Unit type: Inch / Metric
Type: flat-back, ASME/ANSI/AGD
Mitutoyo M-543 ABS Digimatic Indicator ID-C Series
ABS Digimatic Indicator ID-C is a standard digital indicator. A large LCD incorporating 11mm characters (existing products: 8.5mm) is used to improve visibility, and three large, easy-to-press buttons are used in the design to make operations easier to perform. In addition, this affordable product has various measurement functions, including the ability to perform scaling calculations, judge tolerance, hold data, and perform general comparison measurements.
The ABS (ABSOLUTE) Sensor

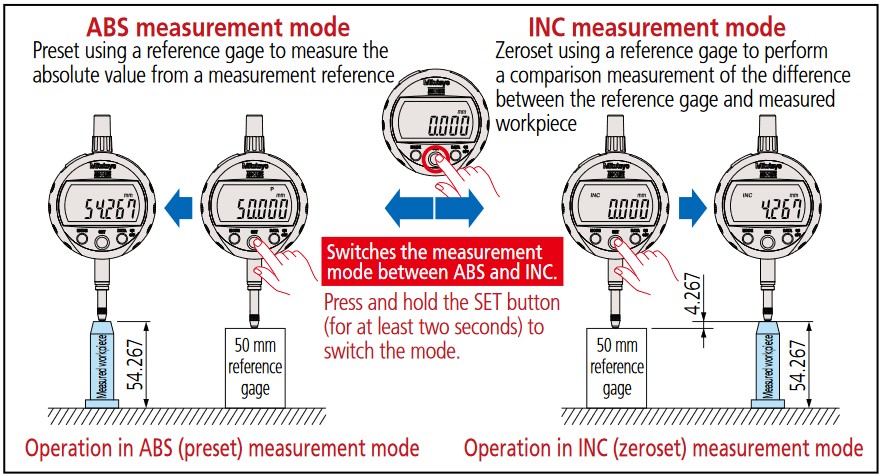

The original Mitutoyo ABS (ABSOLUTE) sensor, which is capable of relocating the origin even after turning the power off, enables you to quickly start multipoint measurement. Also, the ABS measurement mode can be restored even after measurement in the INC mode, where zerosetting is possible at any position, improving work efficiency.
Large LCD
The large LCD incorporates 11mm characters giving 1.5 times the character area of existing products (which display 8.5mm characters) making measurement values much easier to read.

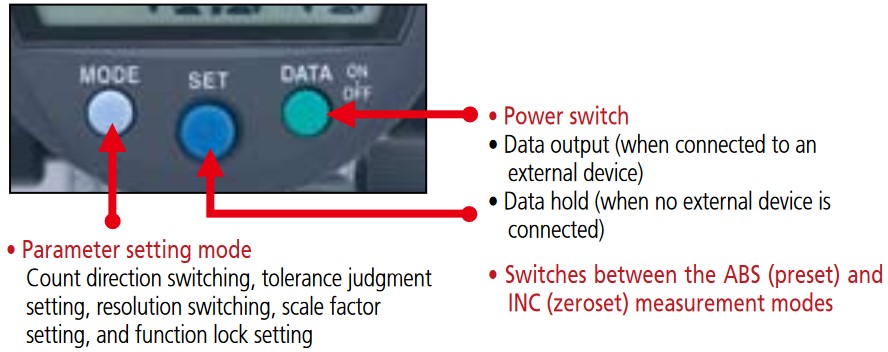

Three large buttons
The popular three-large-button design, which is used in products such as the ABS coolant proof Digimatic indicator ID-N/ID-B, makes buttons easier to press and operations easier to perform.
 |  |
Functions that support measurement
- Zero – Setting function (INC measurement mode)
- Preset function (ABS scale origin setting)
- Switching the direction
- Judging the tolerance
- 330° rotary display
- Resolution switching (For 0.001mm or .00005″ resolution models)
- Display value holding (When no external device is connected)
- Calculation: f(x) =Ax
- Data output (When connected to an external device)
- Function locking
- Low battery voltage alarm
- Error alarm
Specification Mitutoyo M-543 ABS Digimatic Indicator ID-C Series
| Metric | ||||||
| w/ lug | flat-back | Range | Resolution | Overall accuracy* | Measuring force | Remarks |
| M-543-390 | M-543-390B | 12.7mm | 0.001mm | 0.003mm | 1.5N or less | — |
| M-543-394 | M-543-394B | 0.4N – 0.7N | Low Measuring force | |||
| — | M-543-470B | 25.4mm | 1.8N or less | — | ||
| — | M-543-490B | 50.8mm | 0.005mm | 2.3N or less | — | |
| M-543-400 | M-543-400B | 12.7mm | 0.01mm | 0.02mm | 0.9N or less | — |
| M-543-404 | M-543-404B | 0.2N – 0.5N | Low Measuring force | |||
| — | M-543-474B | 25.4mm | 1.8N or less | — | ||
| — | M-543-494B | 50.8mm | 0.04mm | 2.3N or less | — | |
* Hysteresis: 0.001mm/0.01mm Resolution Type: 0.002mm, 0.01mm Resolution Type: 0.02mm
* Repeatability: 0.001mm/0.01mm Resolution Type: 0.002mm, 0.01mm Resolution Type: 0.02mm
| Inch/Metric | ||||||
| w/ lug | flat-back | Range | Resolution | Overall accuracy* | Measuring force | Remarks |
| M-543-391 | M-543-391B | .5″ | .0005″ / .0001″ / .00005″ / 0.001mm / 0.01mm | .0001″ | 1.5N or less | — |
| M-543-392 | M-543-392B | — | ||||
| M-543-395 | M-543-395B | 0.4N – 0.7N | Low Measuring force | |||
| M-543-396 | M-543-396B | Low Measuring force | ||||
| — | M-543-471B | 1″ | 1.8N or less** | — | ||
| — | M-543-472B | — | ||||
| — | M-543-491B | 2″ | .0002″ | 2.3N or less** | — | |
| — | M-543-492B | — | ||||
| M-543-401 | M-543-401B | .5″ | .0005″ / 0.01mm | .001″ | 0.9N or less | — |
| M-543-402 | M-543-402B | |||||
| M-543-405 | M-543-405B | 0.2N – 0.5N | Low Measuring force | |||
| M-543-406 | M-543-406B | Low Measuring force | ||||
| — | M-543-475B | 1″ | 1.8N or less** | — | ||
| — | M-543-476B | — | ||||
| — | M-543-495B | 2″ | .0015″ | 2.3N or less** | — | |
| — | M-543-496B | — | ||||
* Hysteresis: .0005″/.0001″/.0005″0.001mm/0.01mm Resolution Type: .00010″/0.002mm, .0005″/0.01mm Resolution Type: .0010″/0.02mm
* Repeatability: 0005″/.0001″/.0005″0.001mm/0.01mm Resolution Type: .00010″/0.002mm, .0005″/0.01mm Resolution Type: .0005″/0.02mm
** Applies for a spindle orientation between the spindles
Setting measuring force on low measuring force models
| 543-404 / 404B / 405 / 405B / 406 / 406B | 543-394 / 394B / 395 / 395B / 396 / 396B | ||||||
| Spindle orientation | Spring | Weight | Max. measuring force | Spindle orientation | Spring | Weight | Max. measuring force |
| Pointing vertically downward | Yes | Yes | 0.5N or less | Pointing vertically downward | Yes | Yes | 0.7N or less |
| Yes | No | 0.4N or less | Yes | No | 0.6N or less | ||
| No | Yes | 0.3N or less | No | Yes | 0.4N or less | ||
| No | No | 0.2N or less | No | No | Not guaranteed | ||
| Horizontal | Yes | No | 0.3N or less | Horizontal | Not guaranteed | ||

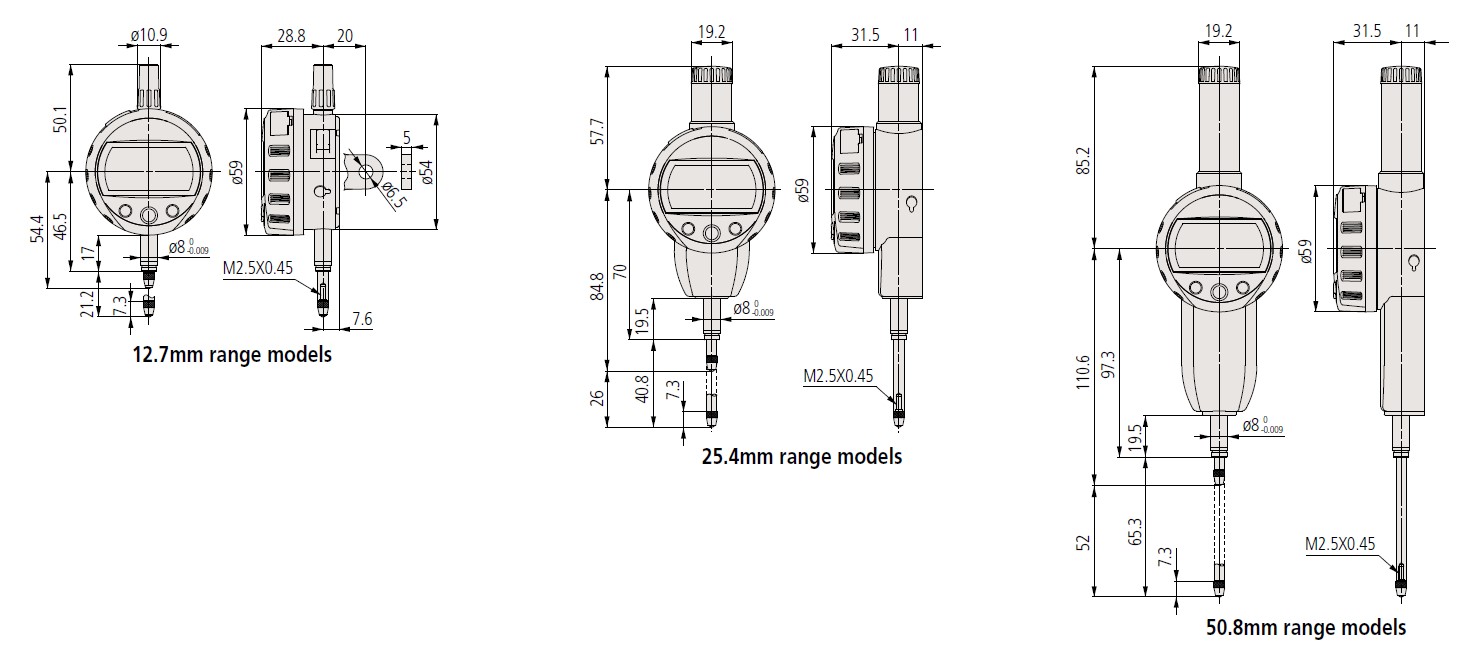

Dimensions Mitutoyo M-543 ABS Digimatic Indicator ID-C Series
